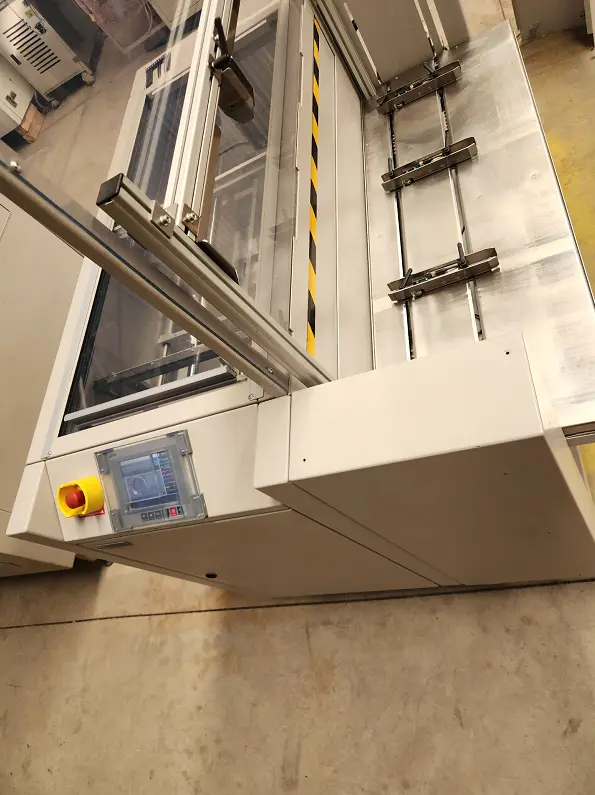

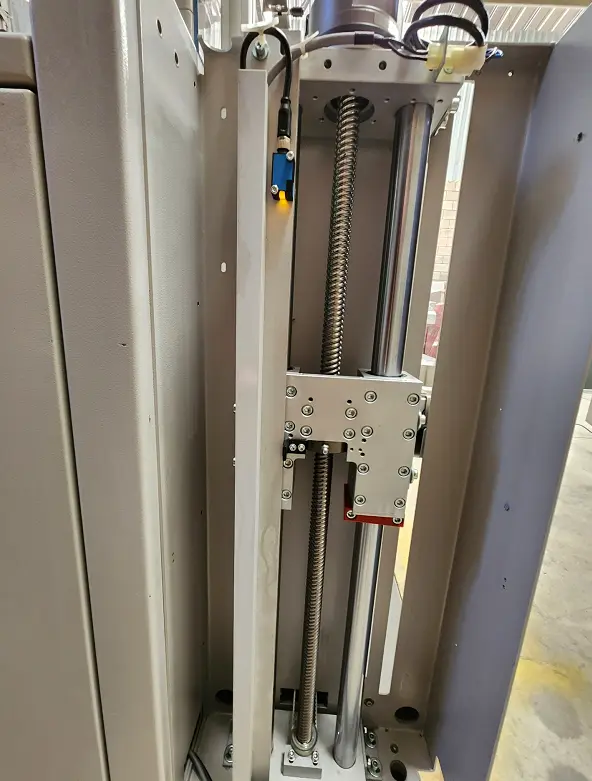

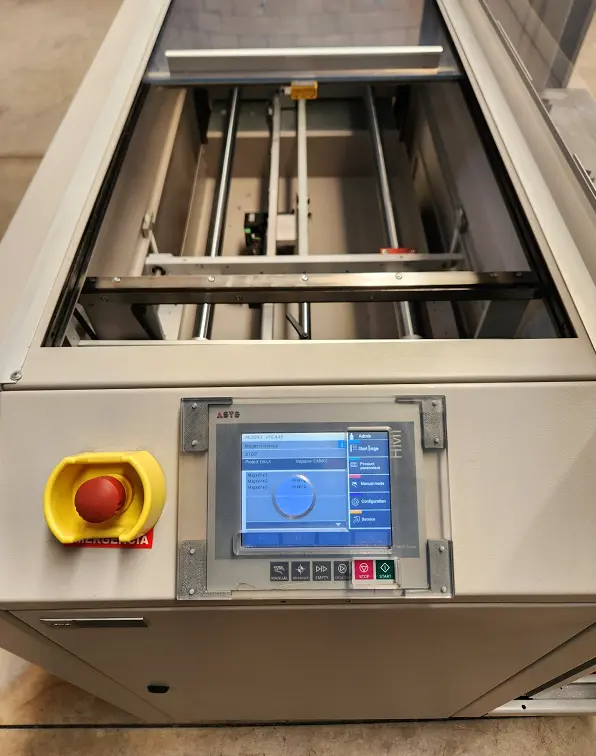

ASYS - AES 03D - Loading Station

Main Technical Specifications

Machine Configuration:

• Transport height: 920 mm ± 50 mm

• Maximum transport height: 460 mm

• Interface: SMEMA, Siemens

• Transfer direction: Left to right

• Operating side: Front of the machine

• Fixed rail: Front of the machine

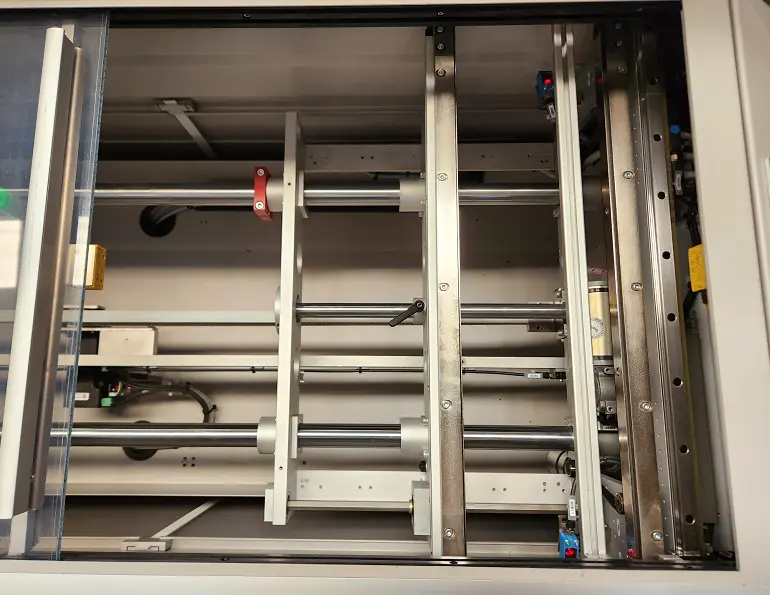

Magazine Capacity:

• Magazine length: 500 mm (420 mm usable)

• Magazine width: 530 mm

• Magazine height: 668 mm

• Slot spacing: 4–40 mm

• Number of slots: 1–50

• Maximum weight per magazine: 30 kg

• Number of magazines: 2 (with technical note a)

Supported Panel Dimensions:

• Length: 70 to 510 mm

• Width: 50 to 460 mm

• Thickness: 0.5 to 4.5 mm

• Component clearance: +12.5 mm (top) / -40 mm (bottom)

• Maximum panel weight: 3 kg

Installation Requirements:

• Power supply: 230 V / 115 V, 50 / 60 Hz, ±10%

• Power system: L1 + N + PE

• Power consumption: 0.5 kW

Physical Dimensions:

• Length × Width × Height: 1170 × 1050 × 1470 mm

• Net weight: 400 kg

• Noise level: < 75 dB
