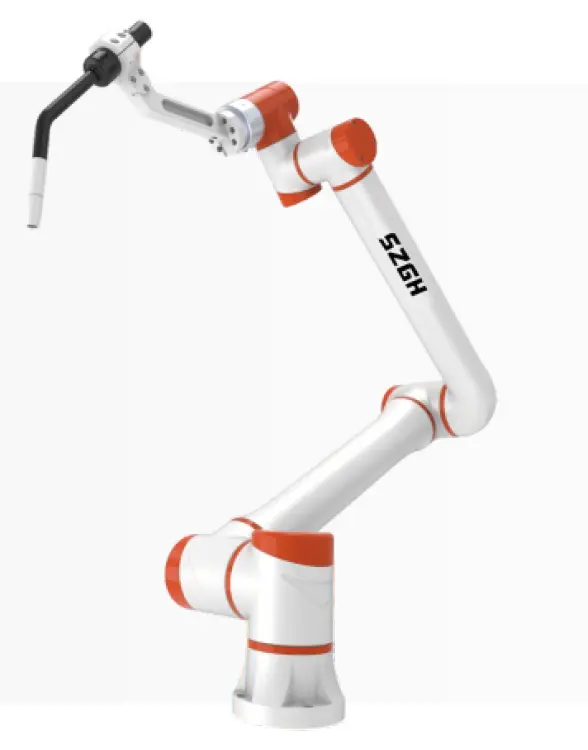

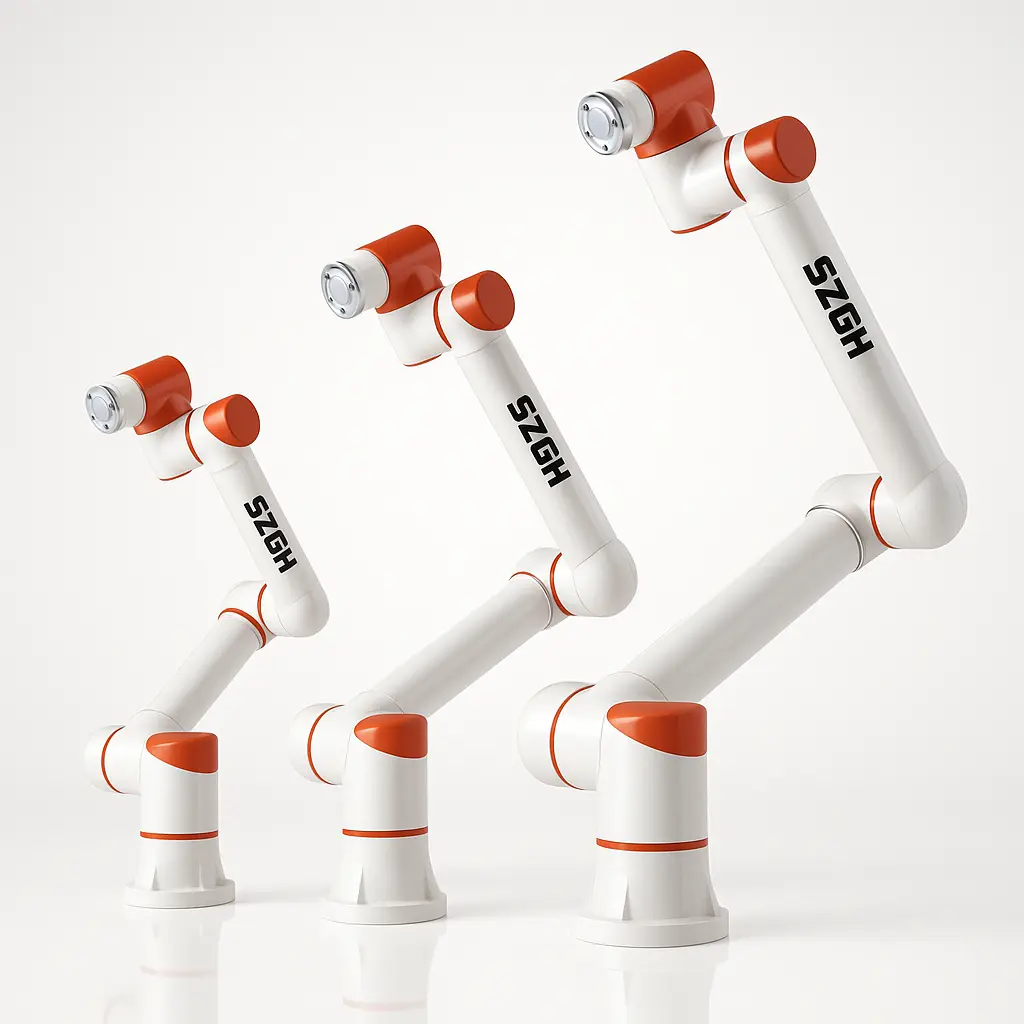

Robot SZGH-0907-A

Robot Features

• Maximum Reach: 1077 mm

• Payload: 7 kg

• Repeatability: ± 0.02 mm

• Maximum Tool Speed: 3 m/s

• Control Bus / Frequency: EtherCAT / 1 KHz

• Rated Power: 260 W

• Operating Temperature: -5°C to 55°C

• Operating Humidity: 5% – 90% RH (non-condensing)

• Installation Mode: Arbitrary angle

• Protection Rating: IP65 (dust and water protection)

• Weight: 21 kg

• Noise Level: ≤60 dB

Connection Ports

• Tool Port:

  • I/O Port: 24V / 1A power supply

  • COM Port: 24V / 1A power supply
