ECOSTEP 54-AA-000-000
ECOSTEP 54-AA-000-000:

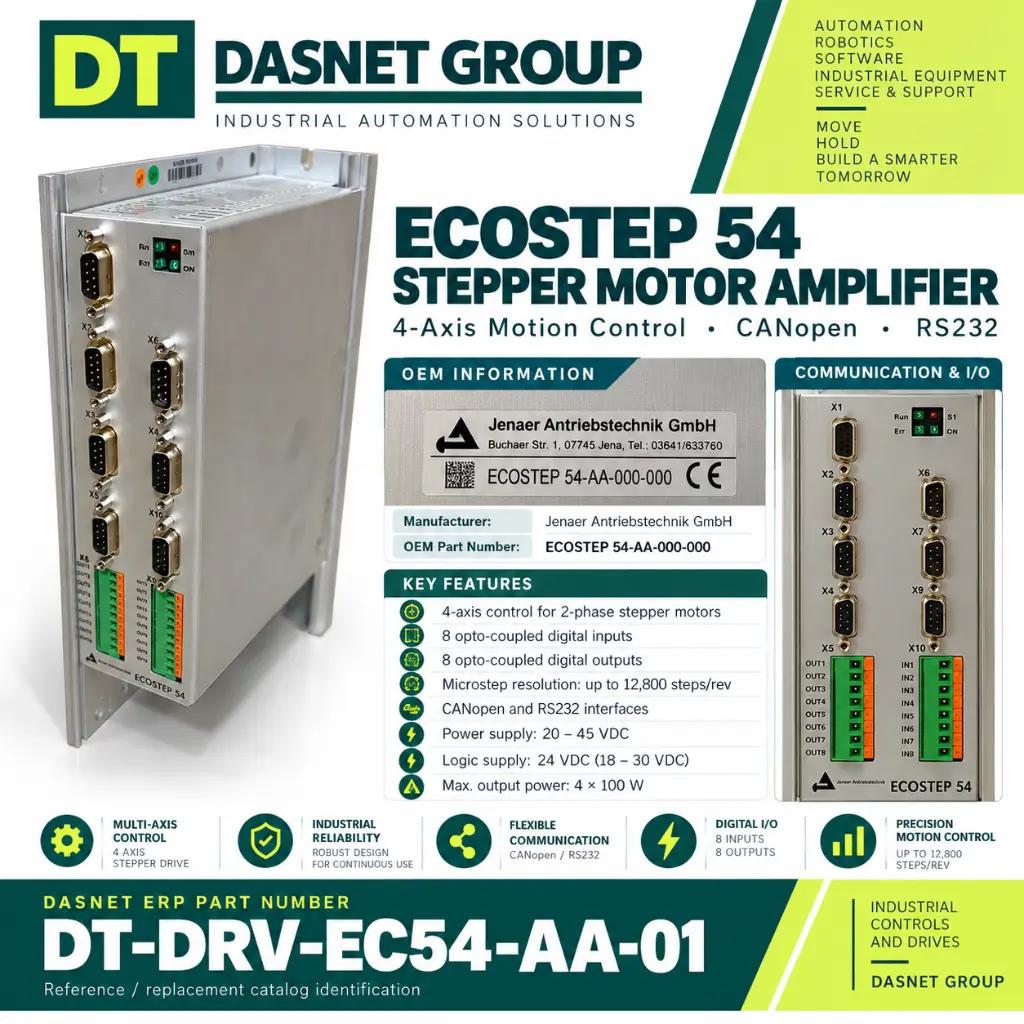

Product Name: ECOSTEP 54 Stepper Motor Amplifier
Dasnet P/N: DT-DRV-EC54-AA-01
OEM Manufacturer: Jenaer Antriebstechnik GmbH
OEM P/N: ECOSTEP 54-AA-000-000
Category: Industrial Automation > Motion Control > Stepper
Drives:
Type: 4-Axis Stepper Motor Amplifier / Motion Controller
Communication: CANopen + RS232
Power Supply: 20–45 VDC
Logic Supply: 24 VDC (18–30 VDC)
Digital Inputs: 8 opto-isolated
Digital Outputs: 8 opto-isolated
Motion: 4 axes / 2-phase stepper motors
Microstep Resolution: up to 12,800 steps/rev
Max. Output Power: 4 × 100 W
